fingerprint module

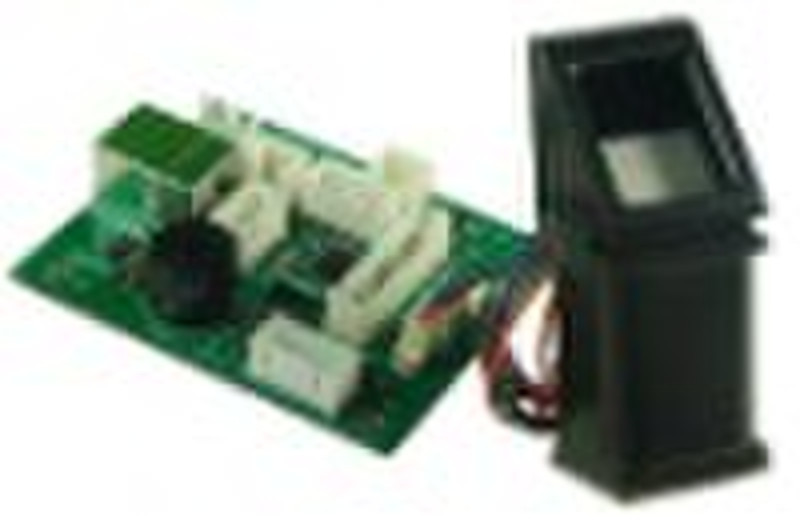

S-0230 Fingerprint Module SPECS-0230 is small size integration module. The module using a fingerprint processing board and a control board consists of a motor / solenoid driver output. Users dont need to make program, only plug in the connector and can play. It can easily be integrated in a safe, storage bags, fingerprint lock and so on. n Characteristics: l Easy installation: the compact shape integration modulel High adaptability: Optical fingerprint collection, accurate fingerprint images l Rapid application: Control board has MCU inside, plug in the connector and can play.l Model Optional: motor / solenoid two output models l Ultra-low power consumption: micro-power design suitable for battery-powered l Widely used: module can be quickly integrated into the fingerprint safe / fingerprint lock etc.n Technical ParametersSensor board Function integrity of the built-in fingerprint processing algorithms for fingerprint collection, storage, search Sensors Optical sensor Resolution 500DPI FRR < 0.1% FAR < 0.001% Capacity 120Users Match time <0.8S Control boardFunction MCU control board fingerprint processing board, buzzer, Add/ Delete User button.. Drive output. Active Current <180 mA @6VDC Driver Output Motor / Solenoid Driver Current 1.8A @6VDC LED RED/GREEN LED Sound Buzzer Alarm Low power alarm
